Test SVG export (using the "Snapshot" command) works on all operating systems

          Details

          • Type: Bug
          • Status: Resolved (View Workflow)
          • Priority: Major
          • Resolution: Unresolved
          • Labels:
            None

            Description

            Currently it seems that the exporting SVG files using the "Snapshot" command doesn't work for Windows computers.

            We should fix this in the near future so that it is working for all operating systems.

              Attachments

                Issue Links

                relates to

                Bug - A problem which impairs or prevents the functions of the product. IGBF-582 Ensure that scripts referencing local files work on all operating systems (including Windows!)

                • Major - Major loss of function.
                • Closed

                  Activity

                  Ascending order - Click to sort in descending order
                  Hide
                  Permalink
                  mason Mason Meyer (Inactive) added a comment -

                  On Windows, a null pointer exception is generated when using the "snapshot" or "snapshotwholeFrame" scripting commands (see below).

                  16:19:15.048 INFO com.gene.igbscript.IGBScriptEngine - doSingleAction line: snapshot igbScript.svg
                  16:19:15.049 INFO com.gene.igbscript.IGBScriptEngine - Exporting file igbScript.svg in mode: wholeFrame
                  16:19:15.272 ERROR com.gene.igbscript.IGBScriptEngine - ImageExport failed
                  java.lang.NullPointerException: null
                  at com.jidesoft.swing.FastGradientPainter.createGradientTile(Unknown Source) ~[na:na]
                  at com.jidesoft.swing.FastGradientPainter.drawGradient(Unknown Source) ~[na:na]
                  at com.jidesoft.swing.JideSwingUtilities.fillGradient(Unknown Source) ~[na:na]
                  at com.jidesoft.plaf.office2007.Office2007Painter.fillBackground(Unknown Source) ~[na:na]
                  at com.jidesoft.status.MemoryStatusBarItem$e_.paintComponent(Unknown Source) ~[na:na]
                  at javax.swing.JComponent.printComponent(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paint(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.print(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paintChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.printChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paint(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.print(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paintChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.printChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paint(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.print(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paintChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.printChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paint(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.print(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paintChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.printChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paint(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.print(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paintChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.printChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paint(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JLayeredPane.paint(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.print(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paintChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.printChildren(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.paint(Unknown Source) ~[na:1.8.0_40]
                  at javax.swing.JComponent.print(Unknown Source) ~[na:1.8.0_40]
                  at java.awt.GraphicsCallback$PrintCallback.run(Unknown Source) ~[na:1.8.0_40]
                  at sun.awt.SunGraphicsCallback.runOneComponent(Unknown Source) ~[na:1.8.0_40]
                  at sun.awt.SunGraphicsCallback.runComponents(Unknown Source) ~[na:1.8.0_40]
                  at java.awt.Container.print(Unknown Source) ~[na:1.8.0_40]
                  at org.freehep.graphicsio.exportchooser.AbstractExportFileType.exportToFile(AbstractExportFileType.java:253) ~[na:na]
                  at org.freehep.graphicsio.exportchooser.AbstractExportFileType.exportToFile(AbstractExportFileType.java:282) ~[na:na]
                  at com.lorainelab.image.exporter.HeadLessExport.headlessComponentExport(HeadLessExport.java:72) ~[na:na]
                  at com.gene.igbscript.IGBScriptEngine.snapShot(IGBScriptEngine.java:467) [igbScript-8.4.0.jar:na]
                  at com.gene.igbscript.IGBScriptEngine.doSingleAction(IGBScriptEngine.java:403) [igbScript-8.4.0.jar:na]
                  at com.gene.igbscript.IGBScriptEngine.doActions(IGBScriptEngine.java:213) [igbScript-8.4.0.jar:na]
                  at com.gene.igbscript.IGBScriptEngine.eval(IGBScriptEngine.java:112) [igbScript-8.4.0.jar:na]
                  at com.gene.igbscript.IGBScriptEngine.eval(IGBScriptEngine.java:132) [igbScript-8.4.0.jar:na]
                  at com.affymetrix.igb.swing.script.ScriptManager.runScript(ScriptManager.java:185) [igbSwingExt-8.4.0.jar:na]
                  at com.affymetrix.igb.action.RunScriptAction$1.doInBackground(RunScriptAction.java:130) [igb-8.4.0.jar:na]
                  at com.affymetrix.igb.action.RunScriptAction$1.doInBackground(RunScriptAction.java:126) [igb-8.4.0.jar:na]
                  at javax.swing.SwingWorker$1.call(Unknown Source) [na:1.8.0_40]
                  at java.util.concurrent.FutureTask.run(Unknown Source) [na:1.8.0_40]
                  at javax.swing.SwingWorker.run(Unknown Source) [na:1.8.0_40]
                  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source) [na:1.8.0_40]
                  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source) [na:1.8.0_40]
                  at java.lang.Thread.run(Unknown Source) [na:1.8.0_40]

                  Show
                  mason Mason Meyer (Inactive) added a comment - On Windows, a null pointer exception is generated when using the "snapshot" or "snapshotwholeFrame" scripting commands (see below). 16:19:15.048 INFO com.gene.igbscript.IGBScriptEngine - doSingleAction line: snapshot igbScript.svg 16:19:15.049 INFO com.gene.igbscript.IGBScriptEngine - Exporting file igbScript.svg in mode: wholeFrame 16:19:15.272 ERROR com.gene.igbscript.IGBScriptEngine - ImageExport failed java.lang.NullPointerException: null at com.jidesoft.swing.FastGradientPainter.createGradientTile(Unknown Source) ~ [na:na] at com.jidesoft.swing.FastGradientPainter.drawGradient(Unknown Source) ~ [na:na] at com.jidesoft.swing.JideSwingUtilities.fillGradient(Unknown Source) ~ [na:na] at com.jidesoft.plaf.office2007.Office2007Painter.fillBackground(Unknown Source) ~ [na:na] at com.jidesoft.status.MemoryStatusBarItem$e_.paintComponent(Unknown Source) ~ [na:na] at javax.swing.JComponent.printComponent(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paint(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.print(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paintChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.printChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paint(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.print(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paintChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.printChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paint(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.print(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paintChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.printChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paint(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.print(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paintChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.printChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paint(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.print(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paintChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.printChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paint(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JLayeredPane.paint(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.print(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paintChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.printChildren(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.paint(Unknown Source) ~ [na:1.8.0_40] at javax.swing.JComponent.print(Unknown Source) ~ [na:1.8.0_40] at java.awt.GraphicsCallback$PrintCallback.run(Unknown Source) ~ [na:1.8.0_40] at sun.awt.SunGraphicsCallback.runOneComponent(Unknown Source) ~ [na:1.8.0_40] at sun.awt.SunGraphicsCallback.runComponents(Unknown Source) ~ [na:1.8.0_40] at java.awt.Container.print(Unknown Source) ~ [na:1.8.0_40] at org.freehep.graphicsio.exportchooser.AbstractExportFileType.exportToFile(AbstractExportFileType.java:253) ~ [na:na] at org.freehep.graphicsio.exportchooser.AbstractExportFileType.exportToFile(AbstractExportFileType.java:282) ~ [na:na] at com.lorainelab.image.exporter.HeadLessExport.headlessComponentExport(HeadLessExport.java:72) ~ [na:na] at com.gene.igbscript.IGBScriptEngine.snapShot(IGBScriptEngine.java:467) [igbScript-8.4.0.jar:na] at com.gene.igbscript.IGBScriptEngine.doSingleAction(IGBScriptEngine.java:403) [igbScript-8.4.0.jar:na] at com.gene.igbscript.IGBScriptEngine.doActions(IGBScriptEngine.java:213) [igbScript-8.4.0.jar:na] at com.gene.igbscript.IGBScriptEngine.eval(IGBScriptEngine.java:112) [igbScript-8.4.0.jar:na] at com.gene.igbscript.IGBScriptEngine.eval(IGBScriptEngine.java:132) [igbScript-8.4.0.jar:na] at com.affymetrix.igb.swing.script.ScriptManager.runScript(ScriptManager.java:185) [igbSwingExt-8.4.0.jar:na] at com.affymetrix.igb.action.RunScriptAction$1.doInBackground(RunScriptAction.java:130) [igb-8.4.0.jar:na] at com.affymetrix.igb.action.RunScriptAction$1.doInBackground(RunScriptAction.java:126) [igb-8.4.0.jar:na] at javax.swing.SwingWorker$1.call(Unknown Source) [na:1.8.0_40] at java.util.concurrent.FutureTask.run(Unknown Source) [na:1.8.0_40] at javax.swing.SwingWorker.run(Unknown Source) [na:1.8.0_40] at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source) [na:1.8.0_40] at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source) [na:1.8.0_40] at java.lang.Thread.run(Unknown Source) [na:1.8.0_40]
                  Hide
                  Permalink
                  mason Mason Meyer (Inactive) added a comment -

                  Reassigning to David to determine what changes need to be made.

                  Show
                  mason Mason Meyer (Inactive) added a comment - Reassigning to David to determine what changes need to be made.
                  Hide
                  Permalink
                  dcnorris David Norris (Inactive) added a comment - - edited

                  The issue appears to be related to jidesoft components (see https://www.jidesoft.com/forum/viewtopic.php?f=18&t=6825), and since I'm assuming the other snapshot commands work as expected we should mark this as a will not fix for the moment. We can document this gap in functionality on the wiki as a workaround.

                  Show
                  dcnorris David Norris (Inactive) added a comment - - edited The issue appears to be related to jidesoft components (see https://www.jidesoft.com/forum/viewtopic.php?f=18&t=6825 ), and since I'm assuming the other snapshot commands work as expected we should mark this as a will not fix for the moment. We can document this gap in functionality on the wiki as a workaround.
                  Hide
                  Permalink
                  dcnorris David Norris (Inactive) added a comment -

                  Update documentation

                  Show
                  dcnorris David Norris (Inactive) added a comment - Update documentation
                  Hide
                  Permalink
                  mason Mason Meyer (Inactive) added a comment -

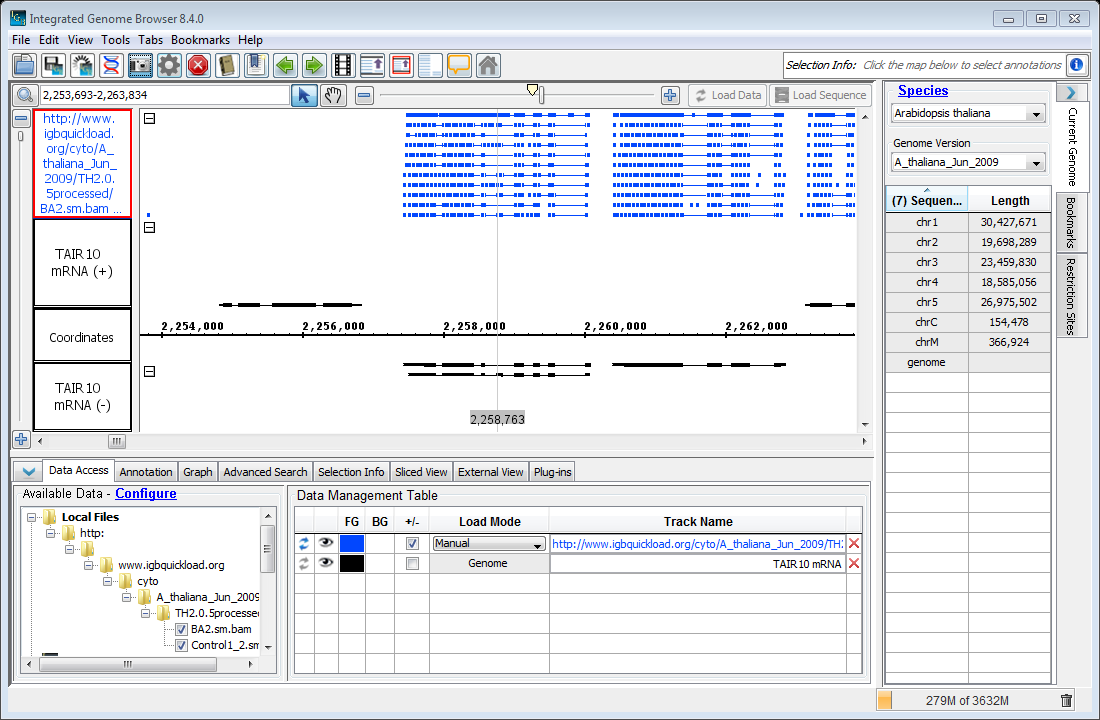

                  Hey David it seems that exporting an image on Windows using the wholeframe option works fine until you try to use the scripting commands for this feature (see screenshot). I wanted to run this by you in case this changed your thoughts on approaching this story.

                  Show
                  mason Mason Meyer (Inactive) added a comment - Hey David it seems that exporting an image on Windows using the wholeframe option works fine until you try to use the scripting commands for this feature (see screenshot). I wanted to run this by you in case this changed your thoughts on approaching this story.
                  Hide
                  Permalink
                  mason Mason Meyer (Inactive) added a comment -

                  I have updated the documentation appropriately. Moving back into the backlog until this can be fixed.

                  Show
                  mason Mason Meyer (Inactive) added a comment - I have updated the documentation appropriately. Moving back into the backlog until this can be fixed.
                  Hide
                  Permalink
                  nfreese Nowlan Freese added a comment -

                  This issue appears to be resolved in IGBF-4081

                  Closing ticket

                  Show
                  nfreese Nowlan Freese added a comment - This issue appears to be resolved in IGBF-4081 Closing ticket
